- Country
- Spain
- Manufacturer / Brand
- General Eléctrica Española (GEE); Madrid
- Year
- 1968
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 290232

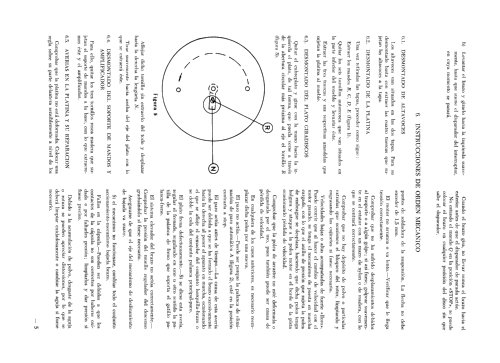

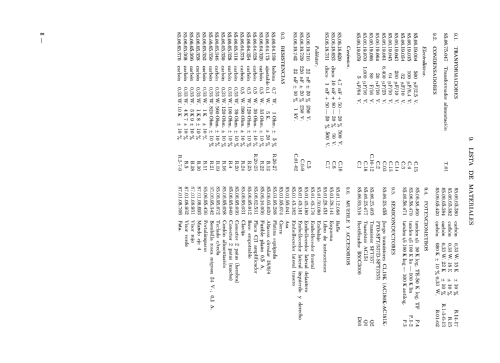

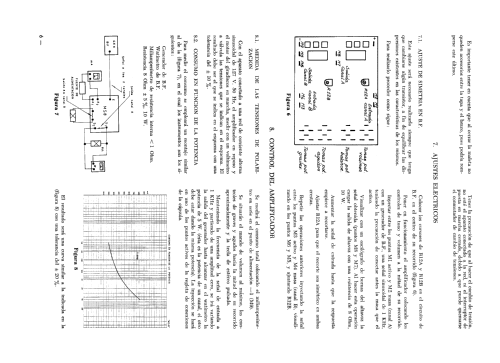

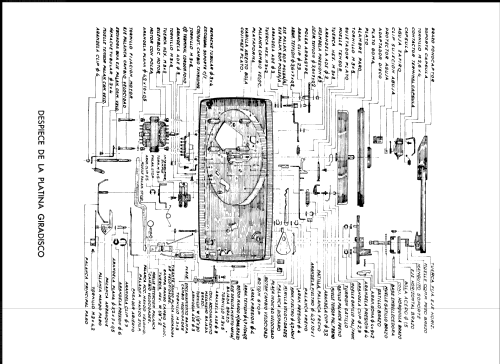

Imagen del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 14
- Semiconductors
- AC151 SFT337 SFT353 SFT377 PTO AC180 AC181 AC151 SFT337 SFT353 SFT377 PTO AC180 AC181 B50C3000
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 127; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: MS-8 - General Eléctrica Española GEE
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 170 x 280 mm / 18.1 x 6.7 x 11 inch
- Notes
-
Tocadiscos estéreo de 2 W. por canal con plato manual de 4 velocidades con cápsula cerámica HI-FI
Lleva incorporados como tapa dos bafles con altavoces de 17 cm
- Net weight (2.2 lb = 1 kg)
- 9.1 kg / 20 lb 0.7 oz (20.044 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
