- Country
- Germany
- Manufacturer / Brand
- Gerätewerk Karl-Marx-Stadt (Chemnitz); VEB; RFT; Karl-Marx-Stadt (Chemnitz); (vorm. Siemens & Halske)
- Year
- 1956 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 271198

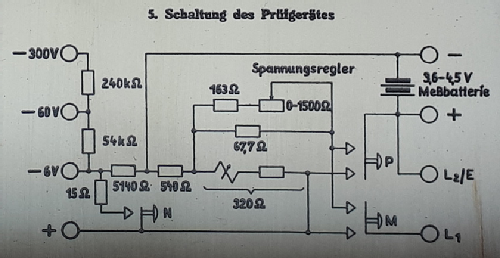

Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material

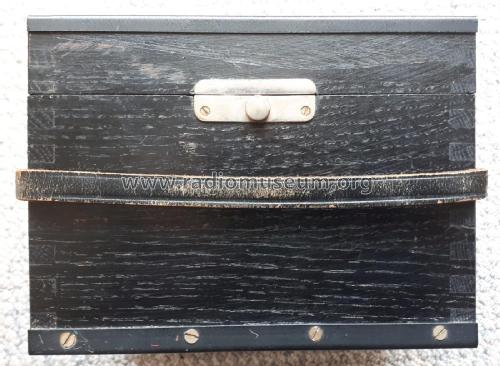

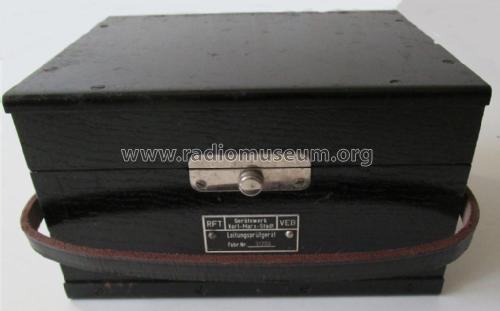

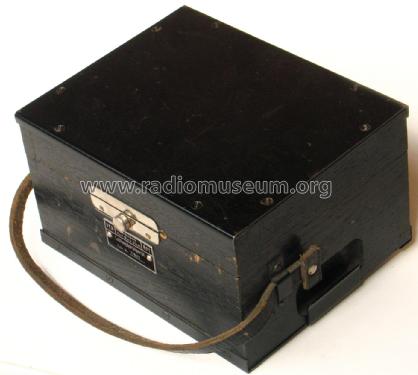

- Wooden case
- from Radiomuseum.org

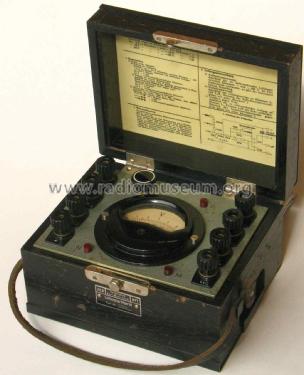

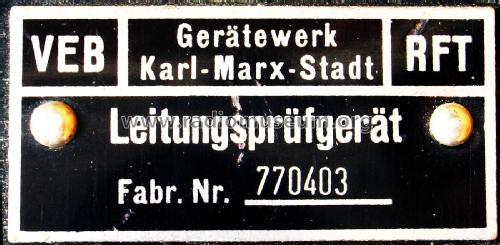

- Model: Leitungsprüfgerät - Gerätewerk Karl-Marx-Stadt
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 170 x 95 x 130 mm / 6.7 x 3.7 x 5.1 inch
- Notes
-

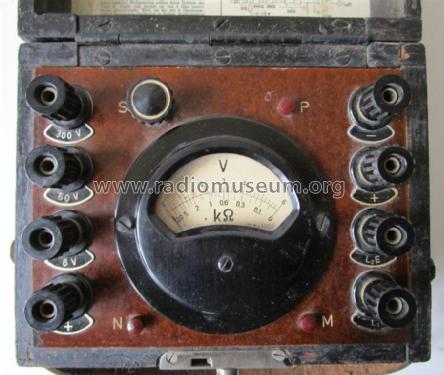

Drehspul-Voltmeter 6-60-300 V, Prüfung von Trockenbatterien mit Belastung, Widerstands- und Leitungs-Messung bis 20 kΩ für den Service.
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
