- Country
- Germany
- Manufacturer / Brand
- Geta, Ges. für Elektrotechnische Anlagen; Berlin und Aach im Hegau (Baden)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 14797
-
- Brand: Weiss KG, Dr.Ing.Habil.

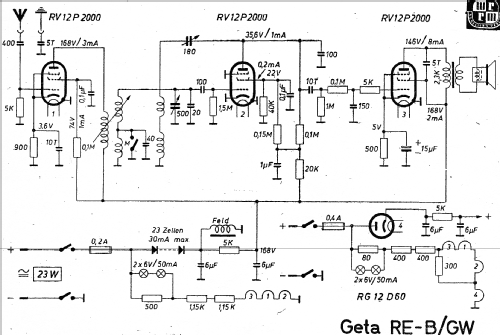

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RE-B/GW [Pdyn] - Geta, Ges. für
- Shape
- Tablemodel, low profile (big size).
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange + Schenk Heft 29 von 1947
