- Country
- United States of America (USA)
- Manufacturer / Brand
- Gilfillan Bros.Inc.; Los Angeles (CA)
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 241469

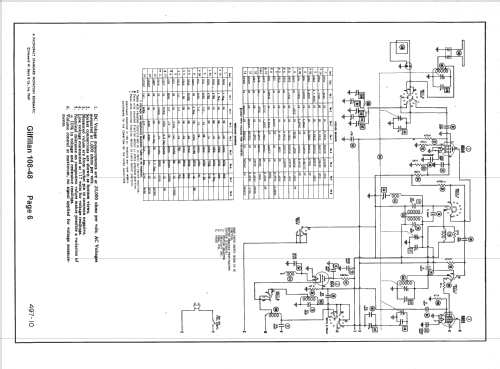

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 108-48 - Gilfillan Bros.Inc.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
AC Operated Combination Phono-Radio-Wire Recorder, AM-FM Superheterodyne Receiver
with Loop Antenna.AM: 540-1620kc FM: 88-108Mc
- Mentioned in

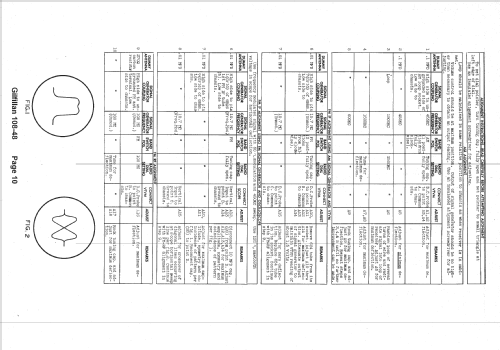

- Photofact Folder, Howard W. SAMS (497-10 Set 59 Folder 10)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
