• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1935 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340683

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 76 42 80

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

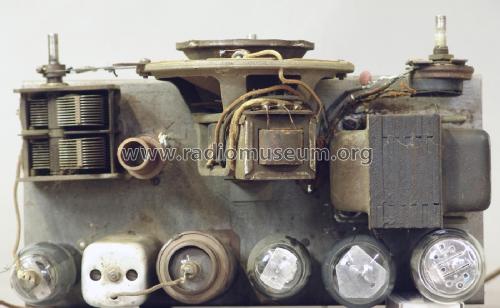

• Model: 56A - Gilfillan Bros.Inc.; Los

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 220 x 180 mm / 13.8 x 8.7 x 7.1 inch

• Notes

• This model should not be confused with later Gilfillan 56A models.

• Author
• Model page created by Wilhelm Siepe. See "Data change" for further contributors.
