- Country
- United States of America (USA)
- Manufacturer / Brand
- Gilfillan Bros.Inc.; Los Angeles (CA)
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127379
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org

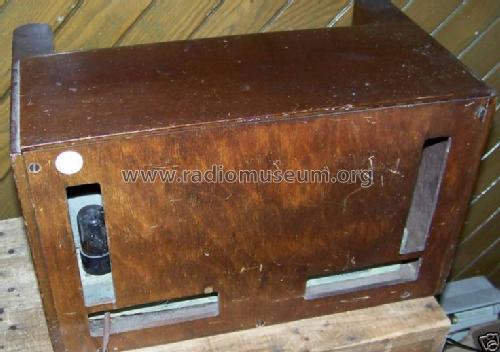

- Model: 66A - Gilfillan Bros.Inc.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes

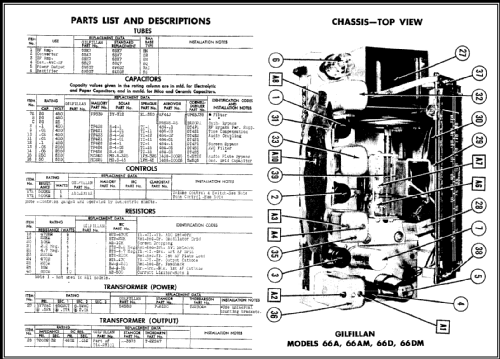

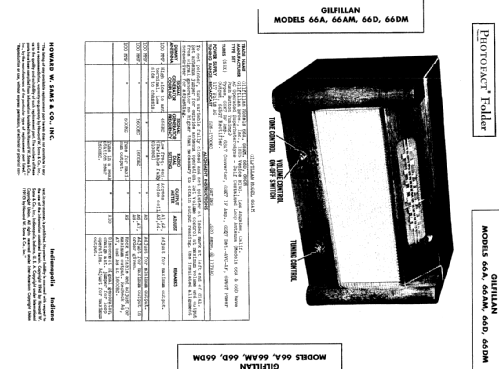

- 4" x 6" PM elliptical speaker. Sams photofact, set 8, folder 468-16, date 11-46, features the Gilfillan models 66A, 66AM, 66D and 66DM as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 8, Folder 468-16)
