• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43089

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 78 75 42 6U5 80

• Main principle
• Superheterodyne (common); ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

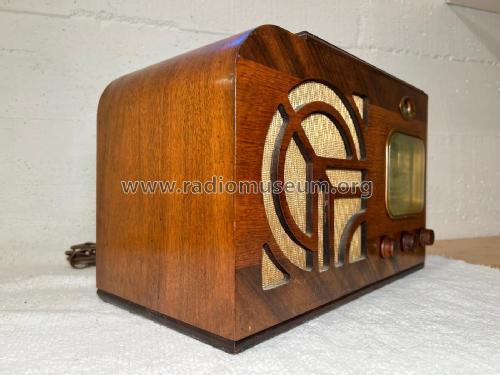

• Model: 6X8 - Gilfillan Bros.Inc.; Los

• Dimensions (WHD)
• 17 x 10.25 x 8.5 inch / 432 x 260 x 216 mm

• Notes
• Tuning eye.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before
