• Country
• United States of America (USA)

• Manufacturer / Brand
• Gilfillan Bros.Inc.; Los Angeles (CA)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43114

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7G 6A8G 6K7G 6H6G 6U5 6F5G 6F6 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

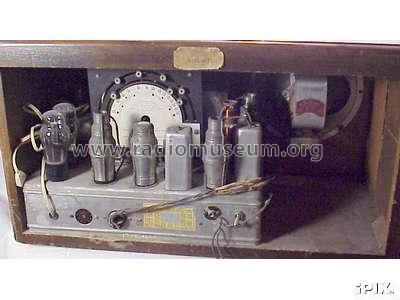

• Model: 8T8E - Gilfillan Bros.Inc.; Los

• Shape
• Tablemodel, low profile (big size).

• Notes
• Tuning eye; automatic electric motor tuning dial (push button control and remote control).

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before
