Four-valve homodyne receiver
Gimeg; Amsterdam
- Country
- Netherlands
- Manufacturer / Brand
- Gimeg; Amsterdam
- Year
- 1928 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 262312
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Special principle (see notes); Special type of reception - please describe.
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 4 & 100 & -9 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Four-valve homodyne receiver - Gimeg; Amsterdam
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 525 x 315 x 265 mm / 20.7 x 12.4 x 10.4 inch
- Notes
-

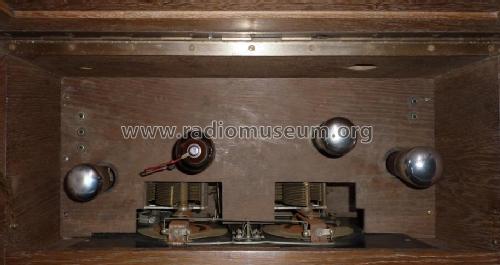

Four valve homodyne (direct-conversion) receiver.
In oak cabinet with doors. The doors are decorated with coromandel wood. The top has a hinged lid with snap closure.

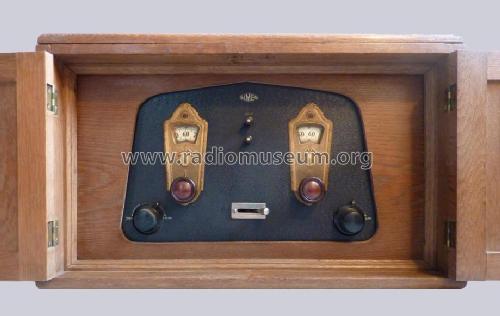

The knobs from left to right: rheostat for the mixer valve with the text "zwak/sterk" ("strong/weak"), antenna tuning, wave length switch with two push/pull switches, the upper one for the scale lights (remarkable for a battery set) and the lower one switching off the filament circuit of the valves, followed by oscillator tuning and reaction control (phase control for the oscillator). This remarkable circuit has not been frequently used in commercially manufactured receivers.
- Author
- Model page created by John Koster. See "Data change" for further contributors.
