Globephone Space Commander ICF-2003DX (Japan 508)

• Country
• Switzerland

• Manufacturer / Brand
• Globe Electronic SrL.; Lugano

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122065

• Picture

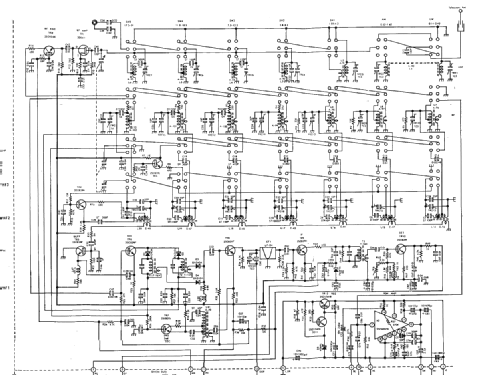

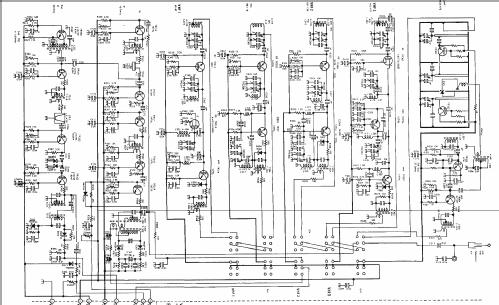

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 8x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Globephone Space Commander ICF-2003DX - Globe Electronic SrL.; Lugano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 280 x 130 mm / 15.7 x 11 x 5.1 inch

• Notes

• Globephone ICF-2003 DX, 12 Band Space Commander;
  1.6 - 30 MHz in 5 Bereichen,
  UKW: 66 - 108 MHz in 2 Bereichen,
  VHF 108 - 178 MHz in 2 Bereichen,
  UHF: 430 - 478 MHz,
  Doppel & Dreifachsuper, 71 Trans./Dioden, 3 FETs, IC, 4 Keramikfilter,
  Betriebsarten: AM, FM, SSB & CW mit BFO.

  Siehe auch Skylark NR-52-F1.

  Made in Japan 508

• Net weight (2.2 lb = 1 kg)
• 5.170 kg / 11 lb 6.2 oz (11.388 lb)

• Price in first year of sale
• 375.00 CHF

• Mentioned in
• Funkschau (Heft 8 April 1981 Seite 125 Werbeschaltung(en))

• Literature/Schematics (1)
• Stiftung Warentest, Zeitschrift Test, 9/1979

• Author
• Model page created by Roland Müller. See "Data change" for further contributors.
