• Country
• Germany

• Manufacturer / Brand
• Götting & Griem, Röddensen

• Year
• 1971 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 218649

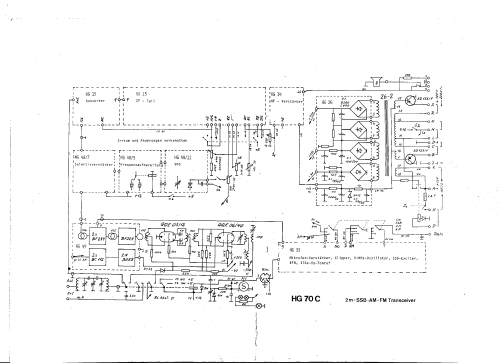

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• QQE03/12 QQE06/40

• Number of Transistors
• 46

• Semiconductors

• Main principle
• Transceiver; ZF/IF 9000 / 455 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

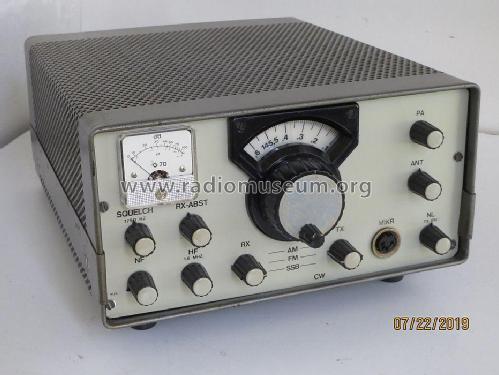

• Model: 2m-SSB-AM-FM Transceiver HG 70C - Götting & Griem, Röddensen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 120 x 280 mm / 9.4 x 4.7 x 11 inch

• Notes
• Götting 2m-SSB-AM-FM Transceiver HG 70C;

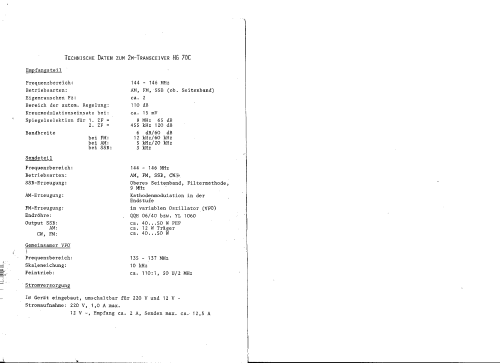

  144 - 146 MHz, AM/FM/CW/SSB-USB. Tonruf 1750 Hz. SSB: 40 - 50 W PEP. AM: 12 W. CW/FM: 40 - 50 W.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
