AM/FM Stereo Cassette Recorder TW-S11

Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327397

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 or D: 6 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 9.5 cm = 3.7 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM Stereo Cassette Recorder TW-S11 - Gold Star Co., Ltd., Goldstar,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 510 x 130 x 95 mm / 20.1 x 5.1 x 3.7 inch
  • Notes

  • Only one electret microphone. MW. FM stereo/mono. Internal ferrite antenna for MW and telescopic stylus antenna for FM.
    Tape A only playback; Tape B play/record. Synchro dubbing.
    Three band graphic equalizer: 100 Hz - 1 kHz - 8 kHz.

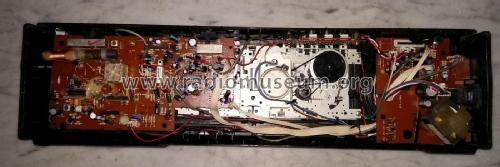

    6 transistors, 4 ICs (L4550 not listed) and 4 rectifier diodes.

  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
