• Country
• South Korea

• Manufacturer / Brand
• Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

• Year
• 2011 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 352124

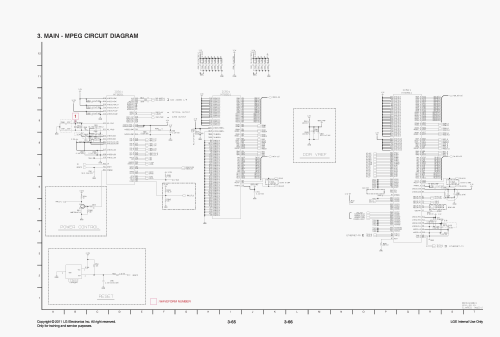

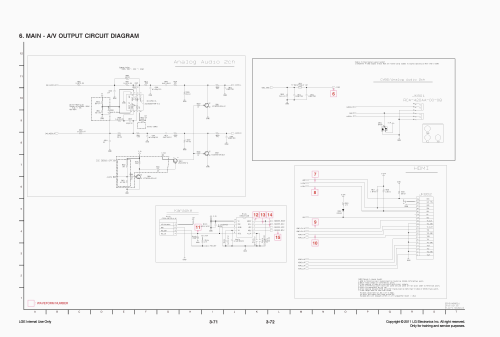

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• CD-DVD-VMD-Blu-ray for video

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Blu-Ray Disc/DVD Player BD650 - Gold Star Co., Ltd., Goldstar,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 360 x 190 x 40 mm / 14.2 x 7.5 x 1.6 inch

• Notes

• The LG BD650 is one of the then so called "All-in-One" players for the early 2010 years, low cost model, able to read most formats namely:

  •  BD, DVD, ACD, DivX, AVCHD, MOVIE, MUSIC PHOTO.
  • Audio Dolby Digital/Plus/TrueHD, AAC, DTS/HD, PCM 2/5.1/7.1.
  • DIVX includes AVI, MPG, MPEG, MKV, MP4, ASF files, with subtitles support for SRT, TXT, SMI, SSA, and SUB.
  • MUSIC includes MP3, WMA, WAV, M4A, WMA, from 32 to 320 kbps bit rates. PHOTO includes JPG, JPEG, PNG.
  • It can read Read Only and RW media discs.

  For outputs connections it features one HDMI for video/audio, and three RCA jacks for video and audio. One USB port offers DC 5V/500mA to read USB devices.

  The unit is based on the Mediatek MT8551 System on a Chip, a 1 GByte NAND flash memory, and 384 MByte DDR3 RAM memory. The Optical drive and LASER device are handled by one R2A30209SP and one BD7175FS ICs.





• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Author
• Model page created by Jose Mesquita. See "Data change" for further contributors.
