Digital & Analog DVD Recorder / VCR Player RCT689H

• Country
• South Korea

• Manufacturer / Brand
• Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

• Year
• 2011 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 324484

• Picture

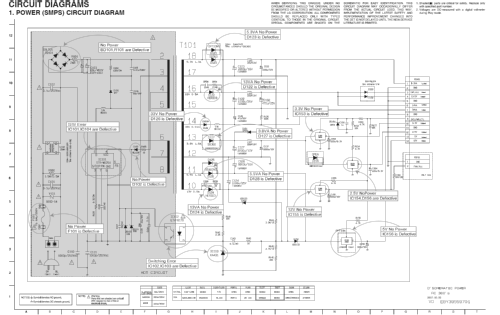

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Digital & Analog DVD Recorder / VCR Player RCT689H - Gold Star Co., Ltd., Goldstar,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 78 x 260 mm / 16.9 x 3.1 x 10.2 inch

• Notes

• -  Video Recording,,

  - Playback DVD-RW,DVD-R, DVD+RW

  - Output Scart x 2 and Video Component

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
