• Country
• South Korea

• Manufacturer / Brand
• Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

• Year
• 1986

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 279617

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 420GDB22-TC01

• Number of Transistors
• 17

• Semiconductors
• BU508 BF421 2SC2068 TDA2006 TDA2579 TDA3653 TDA4601 TEA2014 LA7520 µA78xx 1N4003 1N4148

• Main principle
• Superheterodyne (common); ZF/IF 38900/33400 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 107 cm = 42.1 inch

• Power out
• 2 W (max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Farbfernsehgerät CBS 6081 Ch= PC-04X - Gold Star Co., Ltd., Goldstar,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 513 x 357 x 396 mm / 20.2 x 14.1 x 15.6 inch

• Notes

• Gold Star Co, Ltd ; LG,  Modell CBS-6081, Color Television

  mit 42 cm Bildröhre, Typ 420 GDB22-TC01, eingebauter  VHF/UHF -Kabeltuner zum  Empfang der Kanäle 2 - 12, 21 - 69 und  S1 - S20, sowie 21 - 25, CCIR  Standard PAL-System, 12 mechanische Programm-Drucktasten mit Led Anzeige, Frontlautsprecher  für max. 2 W  Tonausgangsleistung, nur 220V Betrieb, Stromaufnahme max. 65W

• Net weight (2.2 lb = 1 kg)
• 13.2 kg / 29 lb 1.2 oz (29.075 lb)

• Mentioned in

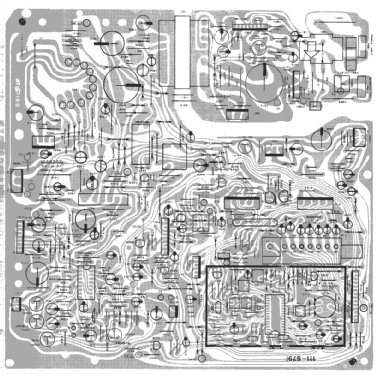

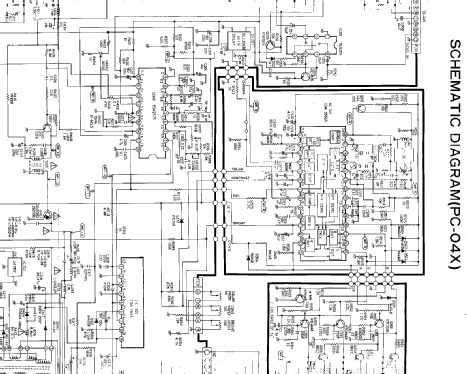

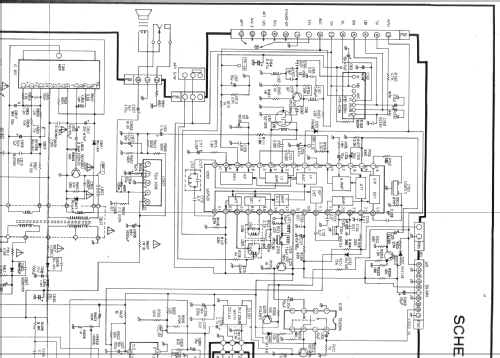

• -- Schematic

• Author
• Model page created by Reinhard Keins. See "Data change" for further contributors.
