Oscilloscope OS-8100

• Country
• South Korea

• Manufacturer / Brand
• Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

• Year
• 1988 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 311097

• Picture

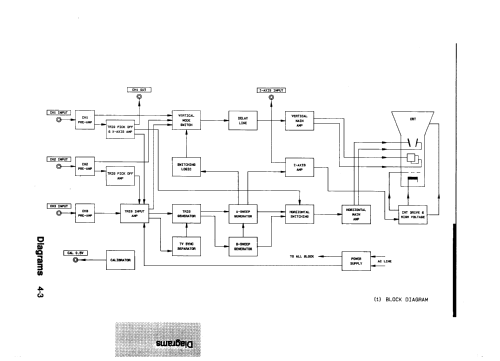

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Oscilloscope OS-8100 - Gold Star Co., Ltd., Goldstar,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 330 x 165 x 420 mm / 13 x 6.5 x 16.5 inch

• Notes

• Goldstar OS-8100

  The OS-8100 is a 3 channel 8 trace oscilloscope with a 100 MHz bandwidth

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
