• Country
• South Korea

• Manufacturer / Brand
• Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165116

• Number of Transistors
• 14

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

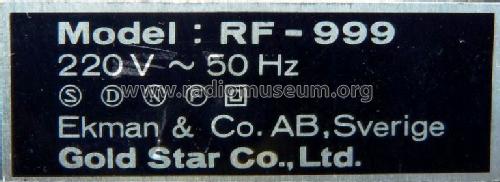

• Model: RF-999 - Gold Star Co., Ltd., Goldstar,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 115 x 52 mm / 9.3 x 4.5 x 2 inch

• Notes

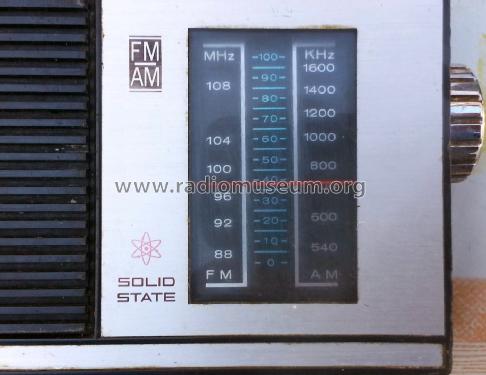

• AM/FM-Portable, produziert von Gold Star Co., ldt. für die Fa. Ekman & Co. AB. Schweden. Frequenzbereich: FM 88 - 108 MHz, AM 540 - 1600 KHz, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, schwenkbares Telekop 60 cm, Ferritantenne 12 cm.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.

• Other Models

• Here you find 196 models, 167 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
