TV/FM/AM Stereo Double Cassette Recorder KMA-0702

Gold Star Co., Ltd., Goldstar, LG Electronics; Seoul

Data
Forum
Pictures
Collections

  • Year
  • 1989 ??
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 351653

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 120 / D: 9 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TV/FM/AM Stereo Double Cassette Recorder KMA-0702 - Gold Star Co., Ltd., Goldstar,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

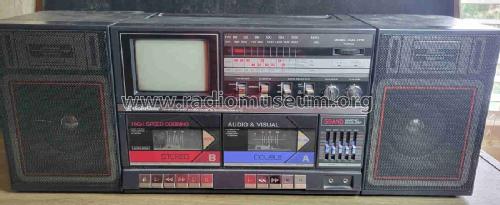

  • 4.5" B&W Portable TV/FM/AM Stereo Double Cassette Recorder Model Goldstar KMA-0702

    High Speed Dubbing
    Auto Stop System
    One Touch Recording
    Long Play System
    Synchro Dubbing
    5Band Graphic Equalizer 8100, 330, 1000, 3300, 10000 Hz +/-10dB)
    Detachable Speakers


    Power Consumption 120VAC 60Hz -  28 Watts



  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
