Gongnongbing 工农兵 403
Tianjin 天津渤海无线电厂 Tianjin Bohai Radio Factory; Tianjin (N)
- Country
- People's Republic of China
- Manufacturer / Brand
- Tianjin 天津渤海无线电厂 Tianjin Bohai Radio Factory; Tianjin (N)
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174387
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 4 x 1.5 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- from Radiomuseum.org
- Model: Gongnongbing 工农兵 403 - Tianjin 天津渤海无线电厂
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 330 x 150 x 145 mm / 13 x 5.9 x 5.7 inch
- Notes
- The brand Gongnongbing, 工农兵, in Mandarin gōngnóngbīng (trad. Chinese 工農兵) was also used by Shanghai 2nd Wireless Factory. It means "workers, peasants, and soldiers".
- Literature/Schematics (1)

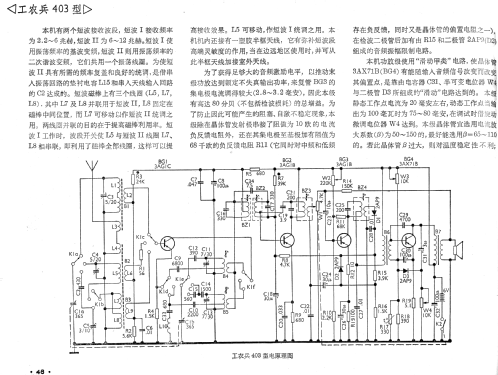

- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 45.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
