Graphic Equalizer Stereo Amplifier DE-100X Super Slim

Goodmans Industries Ltd.; Wembley, Middlesex

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 344645

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Graphic Equalizer Stereo Amplifier DE-100X Super Slim - Goodmans Industries Ltd.;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 140 x 25 x 140 mm / 5.5 x 1 x 5.5 inch
  • Notes

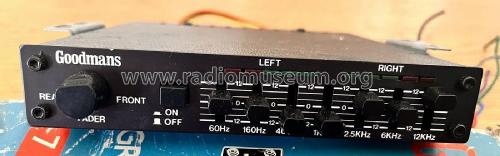

  • Underdash Graphic Equalizer Stereo Amplifier Model Goodmans DE-100X Super Slim

    For 2 and 4-speaker Systems
    7 Band Graphic Equalizer ( 60, 160, 400, 1000, 2500, 6000, 12000 Hz +/-12dB)

    Rated Output Power 20W + 20W (1kHz THD=10%)

    Frequency Response 35 - 25000Hz

    Fader Control for front and rear sound balance adjustment


    12VDC Neg. Ground

    Made in Taiwan and Japan



  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
