One Ten

Goodmans Industries Ltd.; Wembley, Middlesex

Data
Forum
Pictures
Collections

  • Year
  • 1972–1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 161409

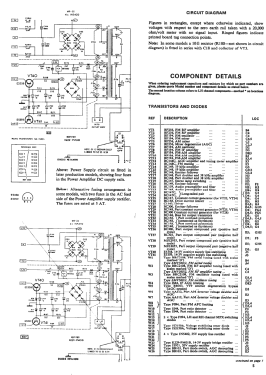

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: One Ten - Goodmans Industries Ltd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 584 x 115 x 305 mm / 23 x 4.5 x 12 inch
  • Notes

  • Goodmans One-Ten, AM/FM/LW/SW Stereo Receiver

    Tuning Range:
    FM 87.5 - 108 MHz
    AM 525 - 1605 kHz
    SW 5.9 – 6.25 MHz
    LW 150-265 kHz

    Power output: 40 watts per channel into 8Ω (stereo)
    Frequency response: 20Hz to 20kHz
    Total harmonic distortion: 0.1%
    Damping factor: 80
    Input sensitivity: 2.5mV (MM), 200mV (ceramic), 200mV (line)
    Signal to noise ratio: 70dB (MM), 80dB (ceramic), 80dB (line)
    Output: 100mV (line)

  • Net weight (2.2 lb = 1 kg)
  • 12.250 kg / 26 lb 15.7 oz (26.982 lb)
  • Price in first year of sale
  • 1,450.00 DM
  • Mentioned in
  • High Fidelity Jahrbuch Nr. 6, p.258 (1972)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Goodmans One Ten Installation Notes)
  • Author
  • Model page created by Ralf Kläs. See "Data change" for further contributors.
