92-528
Goodrich, B.F.; Akron,Ohio
- Country
- United States of America (USA)
- Manufacturer / Brand
- Goodrich, B.F.; Akron,Ohio
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 43220
-
- Brand: Mantola

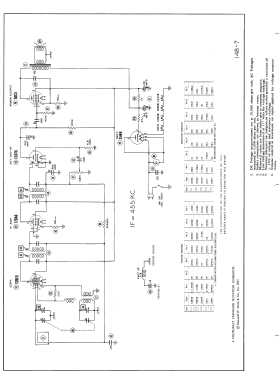

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: 92-528 - Goodrich, B.F.; Akron,Ohio
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
The B.F.Goodrich Model 92-528 is an AC/DC Operated Superheterodyne Receiver with Loop Antenna.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Mentioned in
- Rider's Changes 21-4
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 10-51, Set 148, Folder 7)
