• Country
• United States of America (USA)

• Manufacturer / Brand
• Goodrich, B.F.; Akron,Ohio

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 43274

• • Brand: Mantola

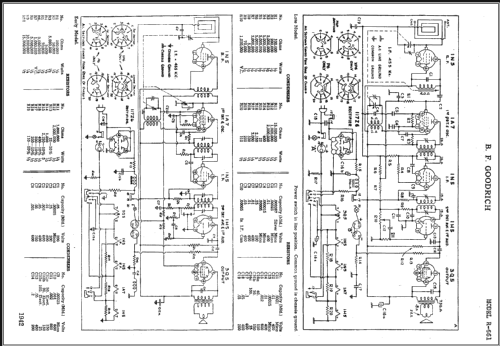

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1N5 1A7 1N5 1H5 3Q5 117Z6

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: R-661 [late] - Goodrich, B.F.; Akron,Ohio

• Notes

• See also the variant early.  Note that the only difference between the "early" and "late" models appears to be a circuit change to the on/off switch, probably to increase safety.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before
