- Country
- United States of America (USA)
- Manufacturer / Brand
- Goodrich, B.F.; Akron,Ohio
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138983
-
- Brand: Mantola
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 117 AC/DC / 9 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- from Radiomuseum.org
- Model: R662 - Goodrich, B.F.; Akron,Ohio
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes

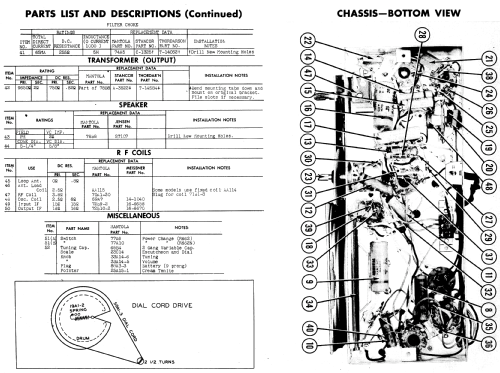

- Sams photofact set 3 folder 463-33 date 8-46 features the Goodrich Mantola models R662 and R662N as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 3 folder 463-33 date 8-46)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
