• Country
• United States of America (USA)

• Manufacturer / Brand
• Goodrich, B.F.; Akron,Ohio

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166668

• • Brand: Mantola

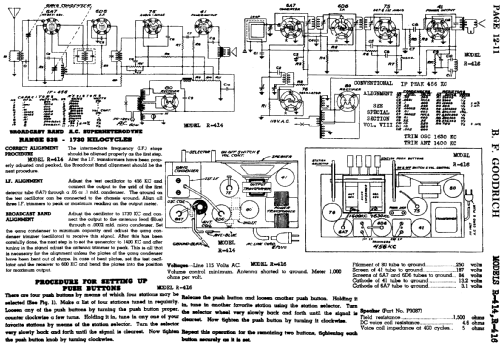

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 76 6D6 75 41 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mantola R-416 - Goodrich, B.F.; Akron,Ohio

• Shape
• Tablemodel with Push Buttons.

• Notes

• Built-in loop antenna; push button tuning.

  Same chassis as  the Admiral 148-6K.

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
