R-7543
Goodrich, B.F.; Akron,Ohio
- Country
- United States of America (USA)
- Manufacturer / Brand
- Goodrich, B.F.; Akron,Ohio
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 184358
-
- Brand: Mantola
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Power type and voltage
- AC/DC-set / 110-120 Volt
- from Radiomuseum.org
- Model: R-7543 - Goodrich, B.F.; Akron,Ohio
- Shape
- Tablemodel, low profile (big size).
- Literature/Schematics (4)

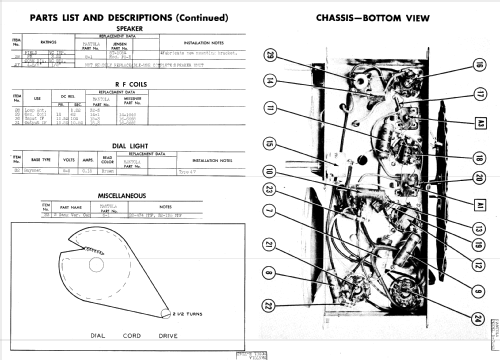

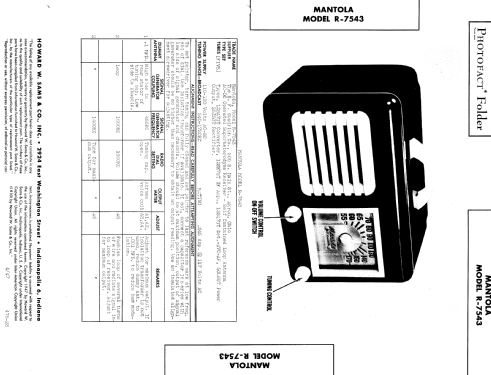

- Photofact Folder, Howard W. SAMS (Set 18, Date 4/47, Folder 478-23)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
