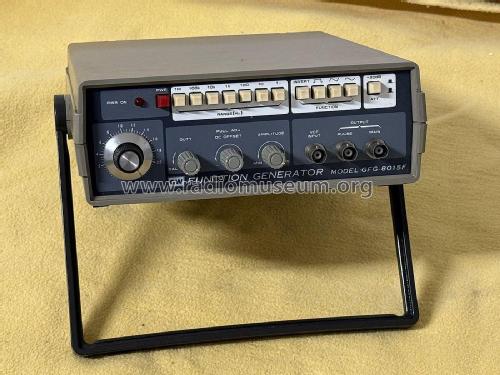

Function Generator GFG-8015F

Good Will Instruments Co., Ltd.; Taipei

  • Year
  • 1990 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 264537

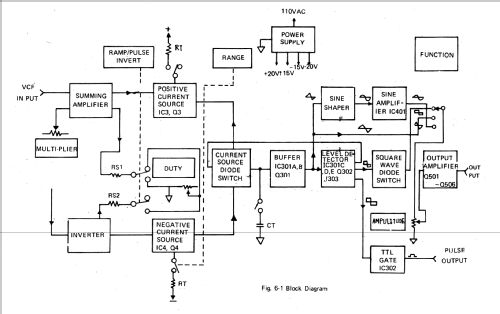

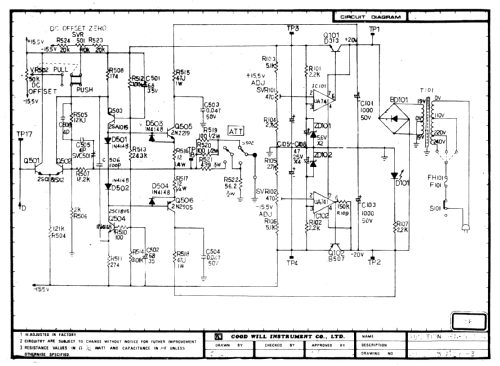

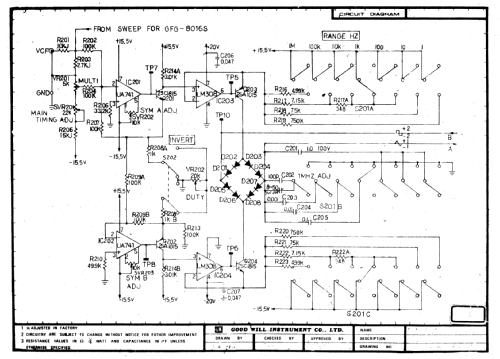

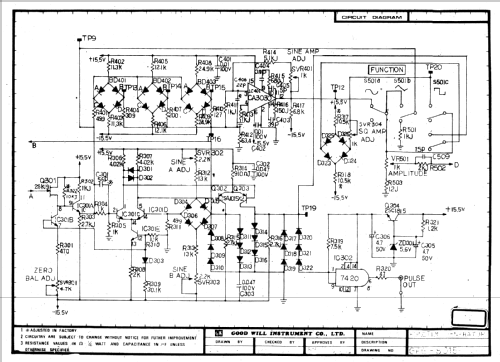

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Function Generator GFG-8015F - Good Will Instruments Co., Ltd
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 235 x 85 x 280 mm / 9.3 x 3.3 x 11 inch
  • Notes
  • Funktions-Generator,

    Sinuswelle, Rechteck, Dreieck,

    0,2Hz-2MHz in 7 Bereichen.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
