BTV 703 TRD
Gorenje; Velenje
- Country
- Yugoslavia
- Manufacturer / Brand
- Gorenje; Velenje
- Year
- 1979 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 346157

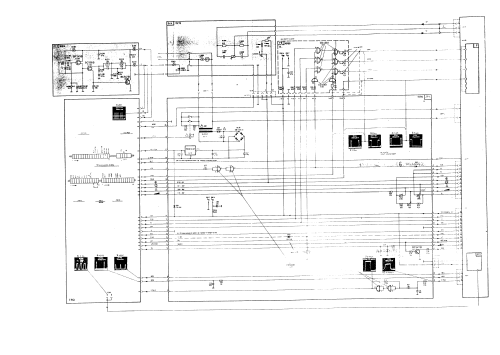

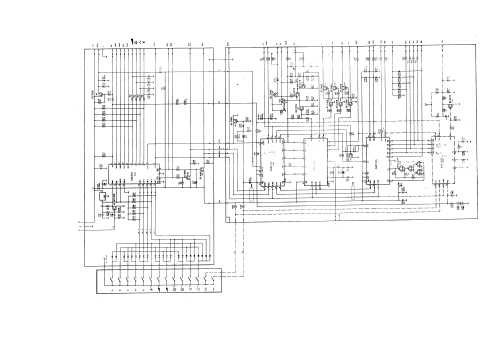

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Number of Transistors
- Semiconductors present.
- Semiconductors
- TDA1170 TDA2591 TDA1082 SAB3012 SAB2015 SAB2024 SAB1016 SAB2022 SAB1009 SAB1046 TDA2541 TBA120U TDA2560 TDA2522 TDA2532 SAB3011
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220V Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BTV 703 TRD - Gorenje; Velenje
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Production was based on Körting Marathon 59630 model.
- Author
- Model page created by Boris Baloh. See "Data change" for further contributors.
