FM-Empfangsteil 02381 + 02117
Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
- Country
- Germany
- Manufacturer / Brand
- Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164172

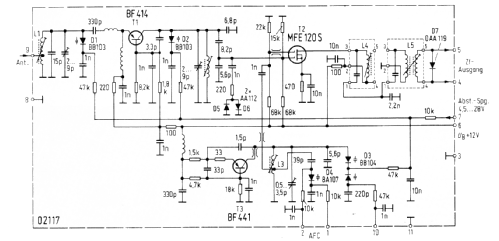

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: FM-Empfangsteil 02381 + 02117 - Görler, J. K.; Berlin
- Shape
- Chassis only or for «building in»
- Notes
-
Abstimmspannung +4,5 ... 28Volt. Mit Feldstärkemessinstrument.
Schaltspannung für MPX. Nah- Fernschalter. Betriebspannung + 12 Volt.
Für Kopfhörer oder NF-Verstärker: nur mit ZF-Verstärker.
