• Country
• Germany

• Manufacturer / Brand
• Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

• Year
• 1964 ?

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 257136

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECC85

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Tuned circuits
• 5 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Details
• Converter

• Power type and voltage
• Powered by external power supply or a main unit. / AC 6,3 & DC 180-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

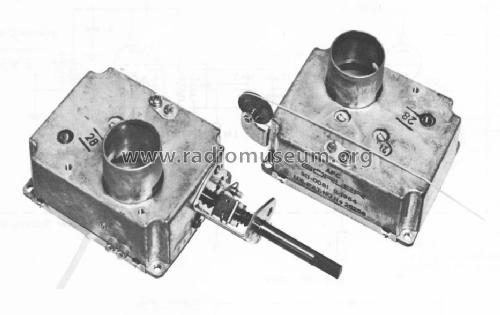

• Model: UKW-Variometer-Tuner 311-0067 - Görler, J. K.; Berlin

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 107 x 62 x 55 mm / 4.2 x 2.4 x 2.2 inch

• Notes

• UKW-Variometer-Tuner/Mischteil mit Spindelantrieb
  Spannungsverstärkung: 50 dB
  Rauschzahl: 3,8 - 6 kTo
  Bandbreite: 250 kHz (-3 dB)
  Steuereingang für AFC

  Das erste ZF-Bandfilter ist Bestandteil des Mischteils.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
