• Country
• Germany

• Manufacturer / Brand
• Görler, J. K.; Berlin (Meuselwitz, Mannheim, Brühl)

• Year
• 1954 ?

• Category
• Radio part (not a module)

• Radiomuseum.org ID
• 337105

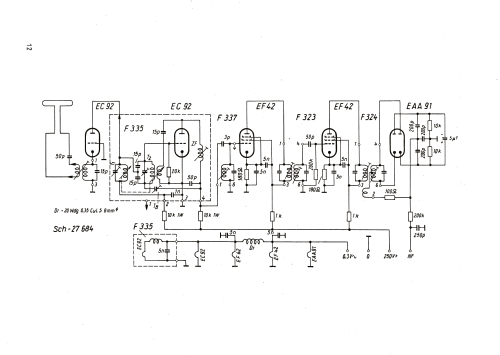

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• ZF/IF 10700 kHz

• Tuned circuits
• 2 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: ZF-Bandfilter F324 - Görler, J. K.; Berlin

• Dimensions (WHD)
• 20 x 34 x 20 mm / 0.8 x 1.3 x 0.8 inch

• Notes

• Das 10,7 MHz ZF-Filter gehört zu dem Filtersatz F323 - F324 für breitbandige UKW-Empfänger.

• Mentioned in
• Funk-Technik (FT) (Heft 4, 1954)

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
