• Country
• Germany

• Manufacturer / Brand
• Gossen, P., & Co. KG (PGCD); Erlangen, Nürnberg

• Year
• 1982

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 142697

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

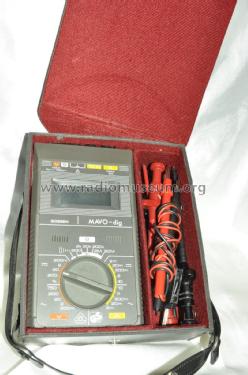

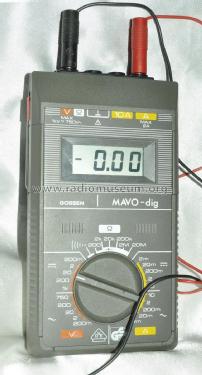

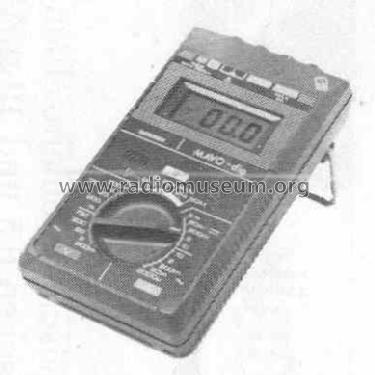

• Model: Vielfachmeßgerät MAVO-dig - Gossen, P., & Co. KG PGCD;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 96 x 172 x 44 mm / 3.8 x 6.8 x 1.7 inch

• Notes
• Vielfachmeßgerät MAVO-dig.
  Innenwiderstand 10 MOhm, Frequenzbereich 40 bis 400 Hz, Anzeigeart: LCD 3½, Anzeigenhöhe 12,6 mm. Ursprungsland Österreich.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Price in first year of sale
• 395.00 DM

• Mentioned in
• Funkschau (Heft 15 Juli 1982)
