• Country
• Great Britain (UK)

• Manufacturer / Brand
• Gould Advance Ltd.; Hainault

• Year
• 1977

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 113022

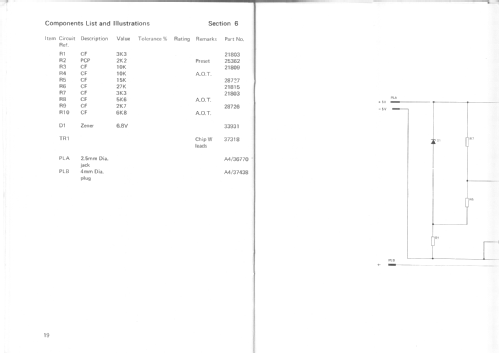

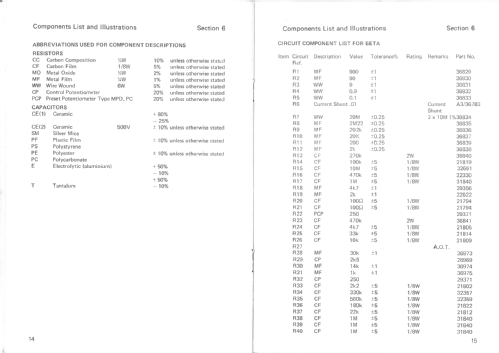

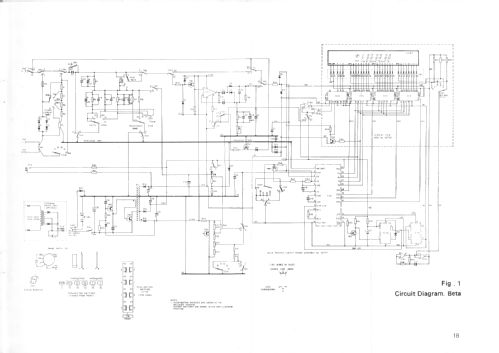

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

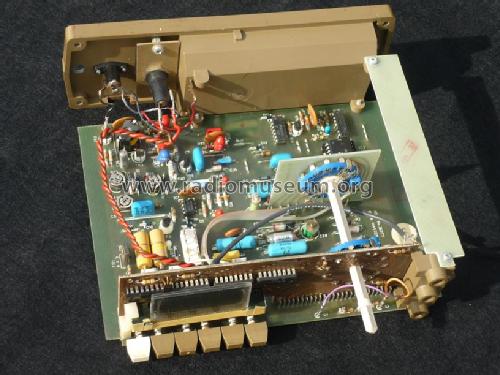

• Model: Digital Multimeter Beta - Gould Advance Ltd.; Hainault

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 195 x 75 x 185 mm / 7.7 x 3 x 7.3 inch

• Notes

• Multimeter mit Messbereichen: 0,2/2/20/200/2000 V; 0,2/2/20/200/2000 mA/10 A; 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2000 kOhm/20 MOhm. Preis in Österreich ATS 4350.- (excl. Mwst.)

  Händlerpreis: 593 DM  (Funkschau 6/78)

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Mentioned in
• Funkschau (3/1977, S. 140)

• Other Models

• Here you find 23 models, 22 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gould Advance Ltd.; Hainault
