Oscilloscope OS-250B

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Gould Advance Ltd.; Hainault

• Year
• 1979 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 211853

• Picture

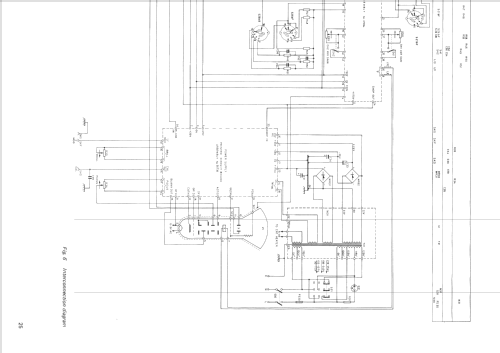

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D13-610GH

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 240 +/-10% Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope OS-250B - Gould Advance Ltd.; Hainault

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 180 x 420 mm / 11.4 x 7.1 x 16.5 inch

• Notes

• Händlerpreis: 1596 DM (Funkschau 6/78)

  Range from d.c. to 15 MHz. Dual channels. Sensitivity 2 mV/cm.
  Display 10 x 8 cm. TV synchronism.

  Price in Italy (1978) 550.000 ITL.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (RadioKit numero 3 aprile 1978)

• Author
• Model page created by Guenther Ziegler. See "Data change" for further contributors.
