Mini System AS-580

Gradiente Eletrônica S.A.; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2004 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273202

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 240 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Mini System AS-580 - Gradiente Eletrônica S.A.; São
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 270 x 332 x 425 mm / 10.6 x 13.1 x 16.7 inch
  • Notes

  • Mini System AS-580

    MW and FM radio, PLL tuning with 30 presets (15 for MW and 15 for FM), dual cassette deck, 3 discs CD changer.
    2 channel stereo, Remote control, 7 presets audio equalization.
    Output power 240W rms (2x 40W per channel plus 2x 80W for subwoofer).
    Phone out, microphone input for karaoke,
    Clock and timer functions.
    4 level subwoofer intensity.
    Auxiliary input (cinch connectors)

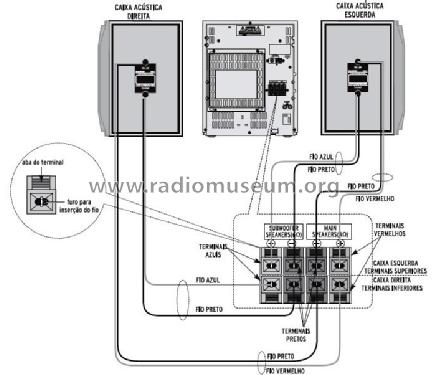

    The set is supplied with 2 loudspeaker box, 3 way speaker system with integrated subwoofer, 5,9 kg each

  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
