• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1957–1959

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 229326

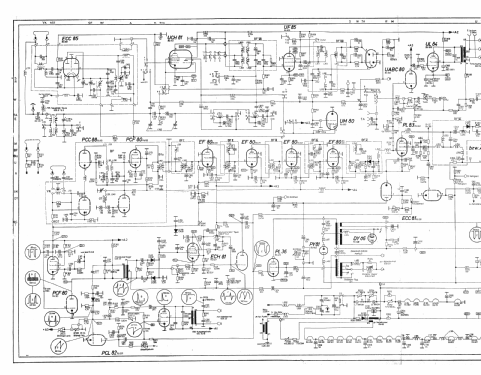

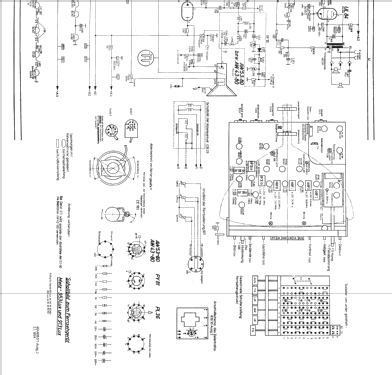

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• ECC85 UCH81 UF85 UABC80 UM80 UL84 PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 ECC81 PCF80 PCL82 ECH81 PL36 PY81 DY86 AW43-80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 913 Lux [ab Nr. 80860] - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 490 x 500 mm / 21.7 x 19.3 x 19.7 inch

• Notes

• Radio- und Fernsehkombination; VHF und LMU. Anschluss für TA.

• Literature/Schematics (1)
• -- Original-techn. papers.
