• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75964

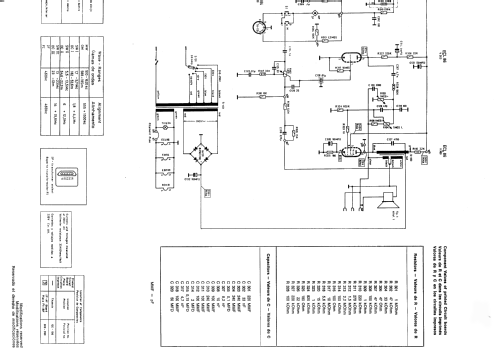

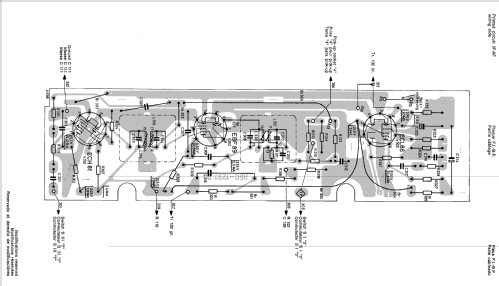

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL86 EM84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110/117, 220, 240/250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Arcadia 07Y - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 230 x 180 inch / 10160 x 5842 x 4572 mm

• Notes
• 1 Rectifier Ref: B250C100.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.

• Other Models

• Here you find 778 models, 698 with images and 596 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
