• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24685

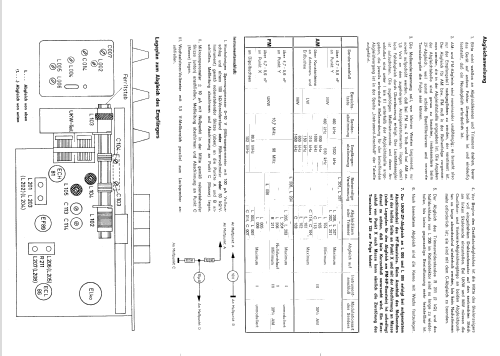

Click on the schematic thumbnail to request the schematic as a free document.

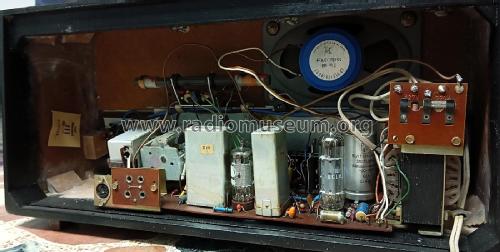

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EF89 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

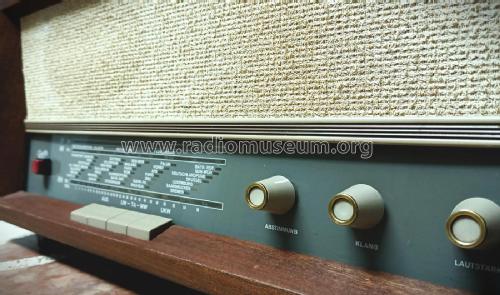

• Model: Baroness 1209 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 440 x 215 x 175 mm / 17.3 x 8.5 x 6.9 inch

• Notes
• UKW-Teil mit Transistoren; Dioden: 2× AA113, OA90, OA179.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 259.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
