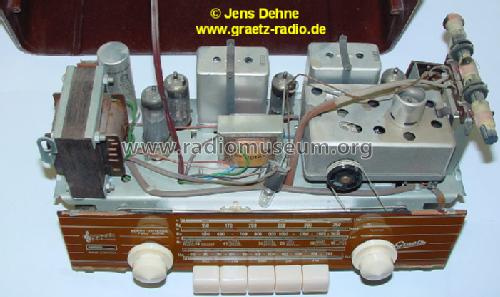

Baroness 610CA
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96156
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Baroness 610CA - Graetz, Altena Westfalen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 350 x 220 x 170 mm / 13.8 x 8.7 x 6.7 inch
- Notes
- Exportmodell für Kanada, abweichend vom Europamodell sind der erweiterte Kurzwellenbereich (16-m- bis 49-m-Band) und der FM-Frequenzbereich bis 108 MHz.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Author
- Model page created by Jens Dehne. See "Data change" for further contributors.
