Baroness 810M
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23397

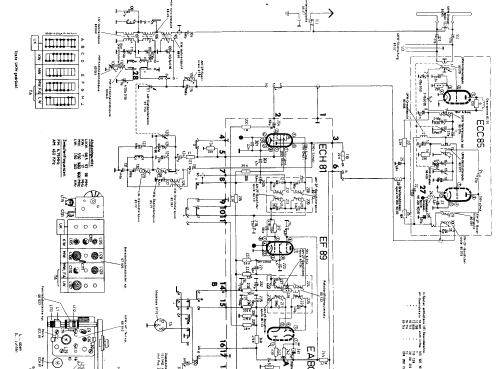

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Baroness 810M - Graetz, Altena Westfalen
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 349 x 219 x 168 mm / 13.7 x 8.6 x 6.6 inch
- Notes
- entspricht elektrisch "Baroness 810", hier "M" wie "modern" mit grauer Skala und Gehäuse; siehe auch http://www.radiomuseum.org/dsp_modell.cfm?model_id=22075 . Rectifier: B250/C75. Dial lamp: 7V/0,3A.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Price in first year of sale
- 195.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1960/61
