• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1968/1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 232783

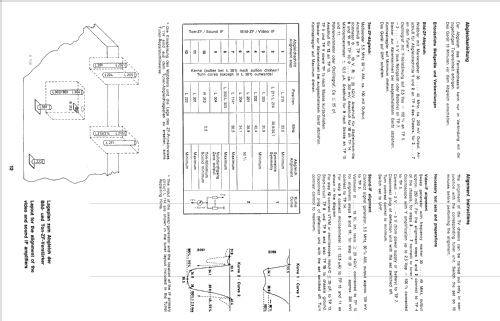

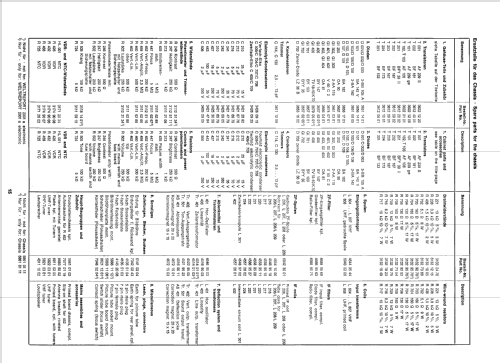

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• PCL86 PCH200 PFL200 PCF802 PCL805 PY88 PL504 DY802 A44-13W/3

• Number of Transistors
• 10

• Semiconductors
• AF239 BF181 AF239 AF106 AF106 BFY39 BF167 BF176 BF173 BF133

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Baroness Electronic 1317a 5112 03 25, 5112 03 27 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 360 x 310 mm / 20.5 x 14.2 x 12.2 inch

• Notes

• Tragbares 44cm s/w-Fernsehgerät Graetz Baroness electronic1317a mit oben eingelassenem Griff.

  Wellenbereiche: VHF und UHF

  Ausführungen:

  • Type 5112 03 25 Nußbaum hell matt
  • Type 5112 03 27 Schleiflack altweiss

• Net weight (2.2 lb = 1 kg)
• 14.1 kg / 31 lb 0.9 oz (31.057 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
