• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23916

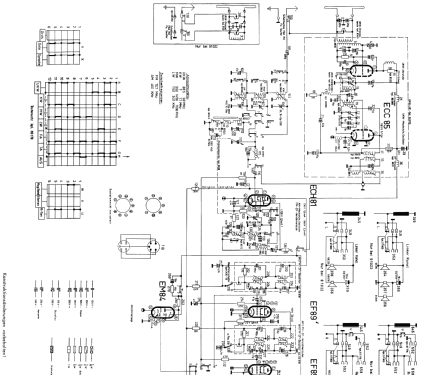

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECC83 ECC83 EL95 EL95 EL95 EL95

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

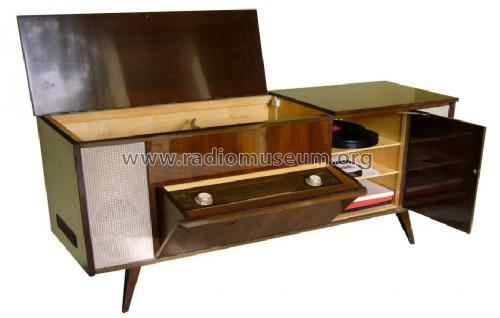

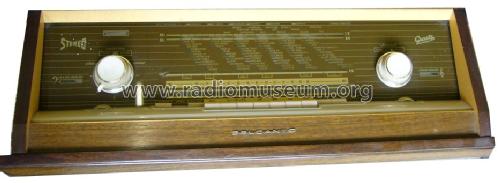

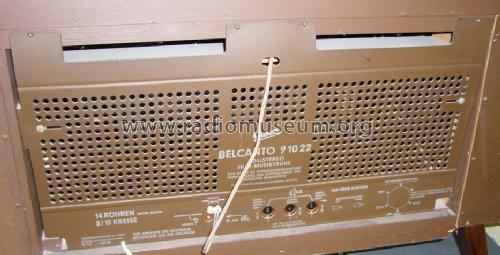

• Model: Belcanto 9 1022 [Nussb.pol.] - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1450 x 800 x 440 mm / 57.1 x 31.5 x 17.3 inch

• Notes
• Ferritantenne dreh - und schaltbar. Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 7,5 W. Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 61 kg / 134 lb 5.8 oz (134.361 lb)

• Price in first year of sale
• 1,198.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Other Models

• Here you find 777 models, 697 with images and 596 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
