Belcanto electronic 301

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28396

• Picture

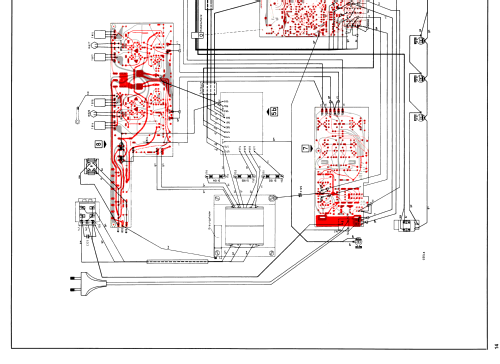

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 84

• Semiconductors
• BF175 BF255 BC237 BC251 BC170 BF334 BF335 BC252 BC172 BC253 TAA350 BC173 BC190 MPS-U05 MPS-U55 MJE3055 BSY84 B40C2200 B30C100 B60C100 ZTK33 ZE2 ZF6,2 BAY17 AA112 AA119 AA143 BA176 BA138 ITT210 ZD6,8 1N4148

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 11 AM circuit(s)     20 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Belcanto electronic 301 - Graetz, Altena Westfalen

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 548 x 142 x 335 mm / 21.6 x 5.6 x 13.2 inch

• Notes

• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 25 W (Sinus).

  Halbleiter teils mehrfach vorhanden. Anstelle des Transistors MJE3055 kann werksseitig auch der Typ PT3360 verbaut sein.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 998.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
