• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95563

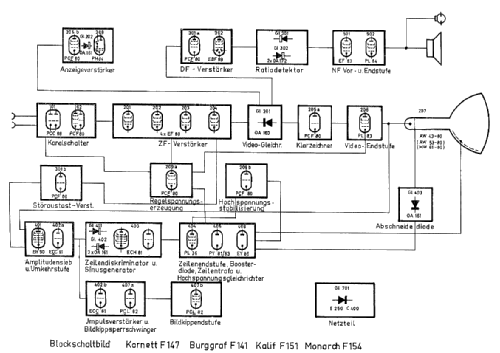

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• AW53-80

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Tuned circuits
• 24 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Burggraf F141 - Graetz, Altena Westfalen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 605 x 560 x 470 mm / 23.8 x 22 x 18.5 inch

• Notes
• Technische Daten wie Kornett F147, jedoch mit 53-cm-Bildröhre. Nur VHF-Bereiche. Kann durch anschraubbare Füße (25,- DM) zum Standgerät umgerüstet werden.

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Price in first year of sale
• 1,098.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Thomas Niebl. See "Data change" for further contributors.
