Burggraf F31
Graetz, Altena (Westfalen)
- Country
- Germany
- Manufacturer / Brand
- Graetz, Altena (Westfalen)
- Year
- 1956/1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 20829
Original Graetz Prospekt aus dem Jahre 1956

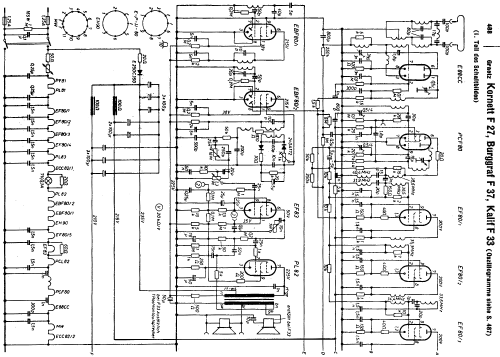

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- E88CC PCF80 EF80 EF80 EF80 EF80 PL83 EF80 EH90 ECC82 PCL82 ECC82 PL36 PY81 EY86 EBF80 EBF80 EF83 PL82 MW53-80
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- AC/DC-set / 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Burggraf F31 - Graetz, Altena Westfalen
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 636 x 593 x 464 mm / 25 x 23.3 x 18.3 inch
- Notes
- VHF-Band I & III.
- Net weight (2.2 lb = 1 kg)
- 39 kg / 85 lb 14.4 oz (85.903 lb)
- Price in first year of sale
- 1,158.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
