• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74816

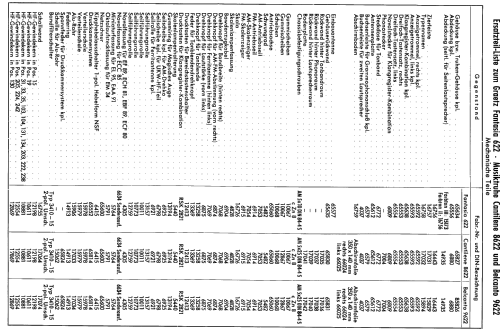

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM34 EAA91 ECF80 EL95 EL95

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220-240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cantilene 8622 - Graetz, Altena Westfalen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1190 x 875 x 440 mm / 46.9 x 34.4 x 17.3 inch

• Notes
• Phono-Chassis lt. VDRG-Handbuch 1958/59 = Perpetuum-Ebner Rex A/4 bzw. lt. Reparaturdienst-Liste = Rex A58.

• Net weight (2.2 lb = 1 kg)
• 52.5 kg / 115 lb 10.2 oz (115.639 lb)

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
