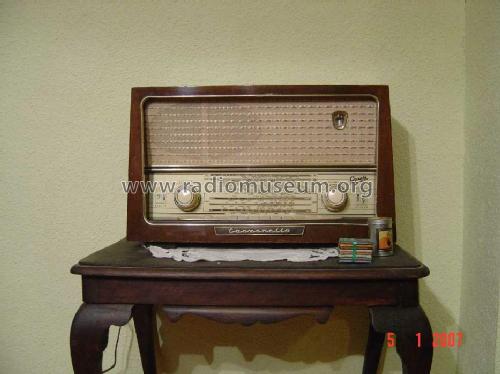

Canzonetta 513

• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25319

• Picture

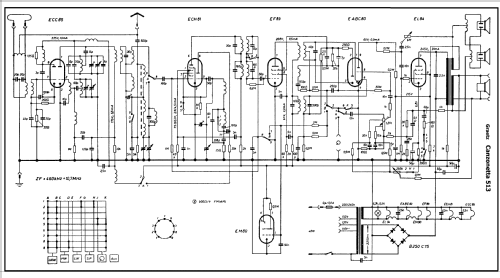

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220/240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Canzonetta 513 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 326 x 230 mm / 21.3 x 12.8 x 9.1 inch

• Notes

• Ferritantenne

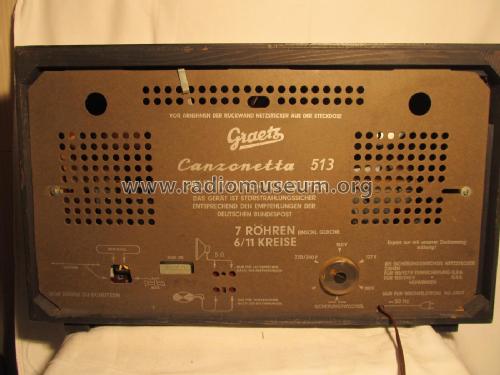

  Rückwanddruck nennt 11 FM-Kreise. Tatsächlich sind es 10, bei Berücksichtigung des breitbandigen Antennenkreises bzw. des Eingangsbandfilter. 7 FM-ZF-Kreise, davon 1 3-Kreis-Filter in der UKW-Box.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 298.00 DM

• External source of data
• Wiesmüller

• Source of data
• Lange, Schaltungen der Funkindustrie

• Mentioned in
• Taxliste Franzis Verlag

• Literature/Schematics (1)
• -- Original-techn. papers.
