• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28653

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

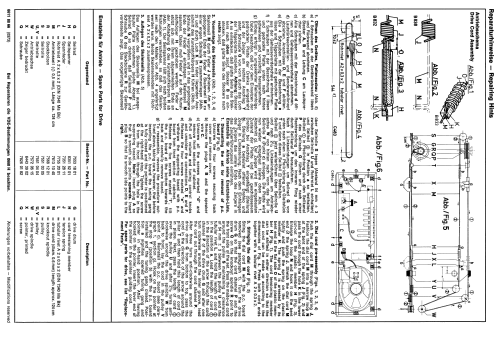

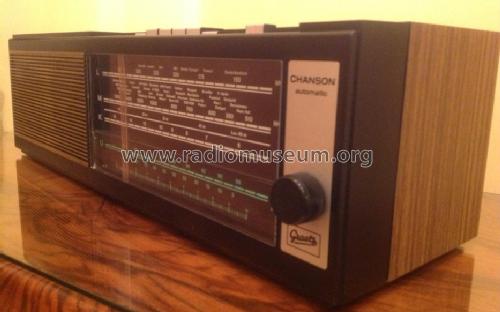

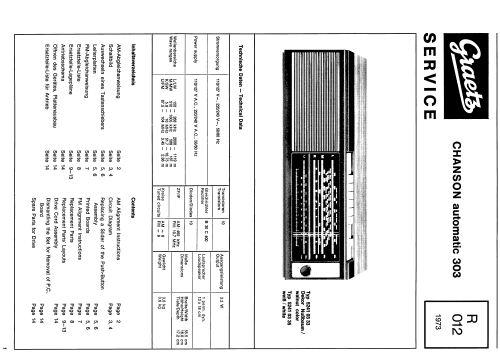

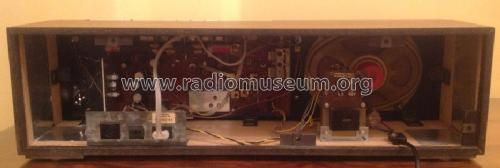

• Model: CHANSON automatic 303 - Graetz, Altena Westfalen

• Shape

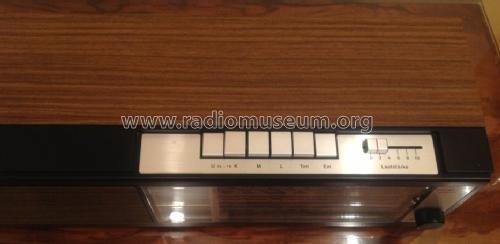

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 555 x 160 x 168 mm / 21.9 x 6.3 x 6.6 inch

• Notes
•   Automat. UKW-Scharfabstimmung, 11 Dioden.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973
