• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22073

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF85 EC92 EF89 EABC80 EL95

• Number of Transistors

• Semiconductors
• E250C50

• Main principle
• Superheterodyne (common); ZF/IF 460 / 6750 kHz; Reflex

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

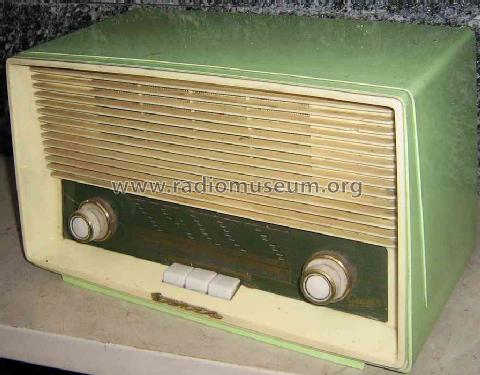

• Model: Danza 808 - Graetz, Altena Westfalen

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 335 x 195 x 175 mm / 13.2 x 7.7 x 6.9 inch

• Notes
• Achtung - Spartransformator im Gerät; Lebensgefahr bei offenem Gerät - Netzleitung liegt einseitig an Chassis!
  UKW-Bereich bis 108MHz

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 155.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers. (Service-Manual 9.59L)

• Literature/Schematics (2)
• - - Manufacturers Literature (Produkt-Katalog 1959/60)
