• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 228944

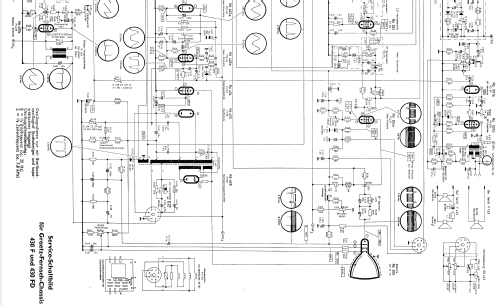

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC88 PCF80 PCF80 EF80 EF80 EF184 PCL84 PCF80 EF80 PCL86 ECH84 EAA91 PCF80 PL500 PY88 DY86 PCL85 AW59-90

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Exzellenz F433 Ch= 430F - Graetz, Altena Westfalen

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 910 x 880 x 400 mm / 35.8 x 34.6 x 15.7 inch

• Notes

• VHF. Asymmetrisches Standgerät mit verschließbarer Rolljalousie. Konzert-Lautprecher 170 x 260 mm und Hochtonlautsprecher 100 mm.

  Siehe auch Exzellenz F433D mit UHF-Tuner 69 427.

  Ersatzzeilentrafo

• Net weight (2.2 lb = 1 kg)
• 42 kg / 92 lb 8.2 oz (92.511 lb)

• Source of data
• -- Original-techn. papers.
